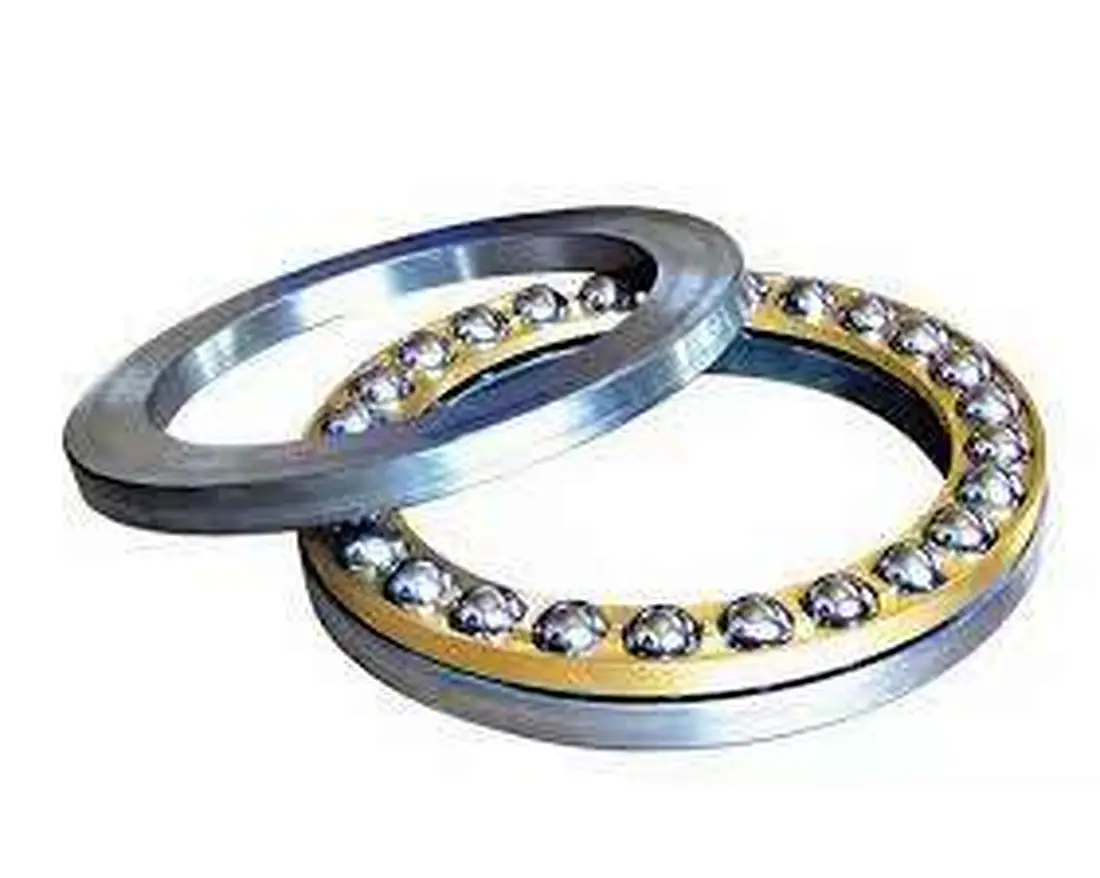

Thrust Ball Bearings
KP000 Series
Quantity:
| Part No:KP000 Series | |||||||
| Product Parameters: | |||||||
| Bearing Unit No. | Shaft Dia | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Weight | ||||||||
| d | (kg) | |||||||||||||
| (mm) | h | a | e | b | s | g | w | Bi | n | (mm) | ||||
| KP000 | 10 | 18 | 67 | 53 | 16 | 7 | 6 | 35 | 14 | 4 | M6 | K000 | P000 | 0.17 |
| KP001 | 12 | 19 | 71 | 56 | 16 | 7 | 6 | 38 | 14.5 | 4 | M6 | K001 | P001 | 0.2 |
| KP002 | 15 | 22 | 80 | 63 | 16 | 7 | 7 | 43 | 16.5 | 4.5 | M6 | K002 | P002 | 0.28 |
| KP003 | 17 | 24 | 85 | 67 | 18 | 7 | 7 | 47 | 17.5 | 5 | M6 | K003 | P003 | 0.35 |
| KP004 | 20 | 28 | 100 | 80 | 20 | 10 | 9 | 55 | 21 | 6 | M8 | K004 | P004 | 0.51 |
| KP005 | 25 | 32 | 112 | 90 | 20 | 10 | 10 | 62 | 22.5 | 6 | M8 | K005 | P005 | 0.66 |
| KP006 | 30 | 36 | 132 | 106 | 26 | 13 | 11 | 70 | 24.5 | 6.5 | M10 | K006 | P006 | 1.01 |
