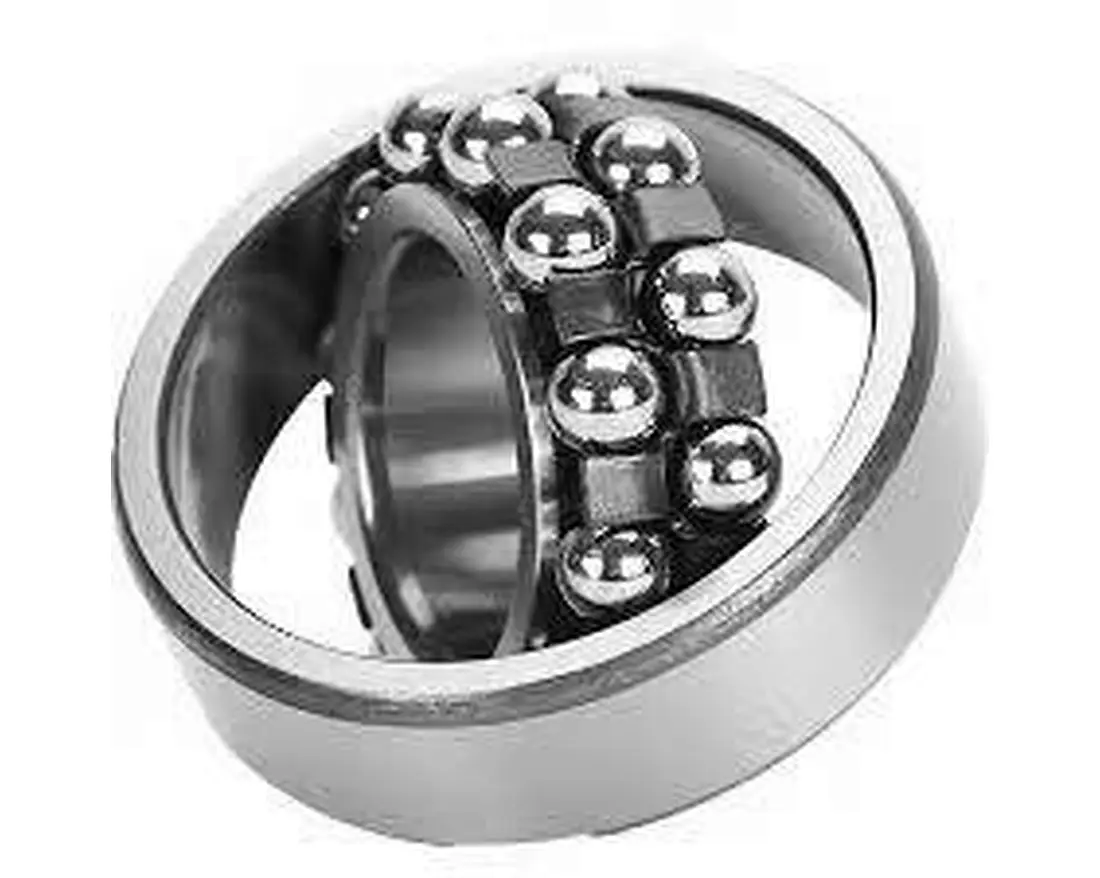

Self-aligning Ball Bearings

13 Series

Quantity:

Part No:13 Series
Product Parameters:

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speed(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
10	35	11	0.6	7.25	1.62	18,000	21,000	0.058	1300
12	37	12	1	9.45	2.16	16,000	18,000	0.066	1301
15	42	13	1	9.55	2.3	13,000	16,000	0.092	1302
17	47	14	1	12.5	3.2	12,000	14,000	0.128	1303
20	52	15	1.1	12.4	3.35	11,000	13,000	0.16	1304
20	52	15	1.1	12.4	3.35	11,000	13,000	0.158	1304K
25	62	17	1.1	18	5	9,100	11,000	0.255	1305
25	62	17	1.1	18	5	9,100	11,000	0.251	1305K
30	72	19	1.1	21.3	6.3	7,700	9,100	0.383	1306
30	72	19	1.1	21.3	6.3	7,700	9,100	0.377	1306K
35	80	21	1.5	25.1	7.85	6,800	8,000	0.5	1307
35	80	21	1.5	25.1	7.85	6,800	8,000	0.492	1307K
40	90	23	1.5	29.6	9.7	6,000	7,000	0.709	1308
40	90	23	1.5	29.6	9.7	6,000	7,000	0.698	1308K
45	100	25	1.5	38	12.7	5,400	6,300	0.953	1309
45	100	25	1.5	38	12.7	5,400	6,300	0.938	1309K
50	110	27	2	43.5	14.1	4,900	5,800	1.2	1310
50	110	27	2	43.5	14.1	4,900	5,800	1.18	1310K
55	120	29	2	51.5	17.9	4,500	5,200	1.58	1311
55	120	29	2	51.5	17.9	4,500	5,200	1.56	1311K
60	130	31	2.1	57	20.8	4,100	4,800	1.96	1312
60	130	31	2.1	57	20.8	4,100	4,800	1.93	1312K
65	140	33	2.1	62	22.9	3,800	4,500	2.42	1313
65	140	33	2.1	62	22.9	3,800	4,500	2.38	1313K
70	150	35	2.1	74.5	27.7	3,500	4,200	2.99	1314
75	160	37	2.1	79.5	30	3,300	3,900	3.55	1315
75	160	37	2.1	79.5	30	3,300	3,900	3.5	1315K
80	170	39	2.1	88.5	33	3,100	3,600	4.17	1316
80	170	39	2.1	88.5	33	3,100	3,600	4.11	1316K
85	180	41	3	97.5	38	2,900	3,400	4.96	1317
85	180	41	3	97.5	38	2,900	3,400	4.89	1317K
90	190	43	3	116	44.5	2,700	3,200	5.78	1318
90	190	43	3	116	44.5	2,700	3,200	5.69	1318K
95	200	45	3	132	51	2,600	3,000	6.69	1319
95	200	45	3	132	51	2,600	3,000	6.59	1319K
100	215	47	3	143	57.5	2,400	2,900	8.3	1320
100	215	47	3	143	57.5	2,400	2,900	8.19	1320K
105	225	49	3	156	64.5	2,300	2,700	10	1321
110	240	50	3	164	71.5	2,200	2,600	11.8	1322
110	240	50	3	164	71.5	2,200	2,600	11.7	1322K
