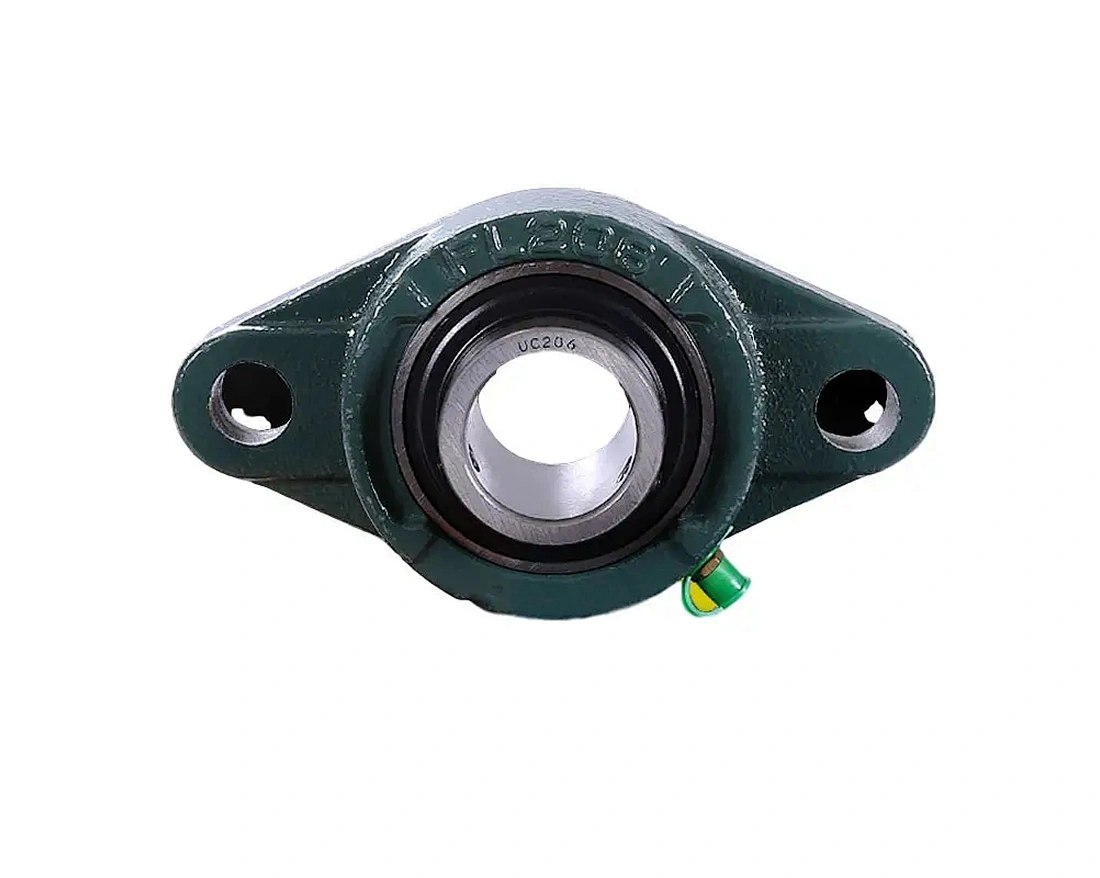

Pillow Block Bearings

UCFL200 Series

Quantity:

Part No:UCFL200 Series
Product Parameters:

Bearing Uint No.	Shaft Dia d		Dimensinons(mm)												Bolt Used		Bearing No.	Housing No.	Housing
			a	e	i	g	l	s	b	t	z1	z	Bi	n	(mm)	(in)			Wt (kg)
	(in)	(mm)
UCFL201-8	1/2	12	99	76.5	15	13	25.5	11.5	57			31	26	10	M10	3/8	UCW201-8	FL203	0.25
UCFL202-9	9/16	15															UCW202-9
UCFL202-10	5/8	17															UCW202-10
UCFL203-11	11/16																UCW203-11
UCFL201																	UCW201
UCFL202																	UCW202
UCFL203																	UCW203
UCFL201-8	1/2		113	90	15	12	25.5	12	60	2	40.5	33.3	31	12.7	M10	3/8	UC201-8	FL204	0.28
UCFL202-9	9/16																UC202-9
UCFL202-10	5/8																UC202-10
UCFL203-11	11/16																UC203-11
UCFL204-12	3/4																UC204-12
UCFL201		12															UC201
UCFL202		15															UC202
UCFL203		17															UC203
UCFL204		20															UC204
UCFL205-13	13/16	25	130	99	16	14	27	16	68	2	44.5	35.7	34.1	14.3	M14	1/2	UC205-13	FL205	0.4
UCFL205-14	7/8																UC205-14
UCFL205-15	15/16																UC205-15
UCFL205-16	1/1																UC205-16
UCFL205																	UC205
UCFL206-17	1/16	30	148	117	18	14	31	16	80	2	49	40.2	38.1	15.9	M14	1/2	UC206-17	FL206	0.54
UCFL206-18	1/8																UC206-18
UCFL206-19	3/16																UC206-19
UCFL206-20	1/4																UC206-20
UCFL206																	UC206
UCFL207-20	1/4	35	161	130	19	16	34	16	90	3	55	44.4	42.9	17.5	M14	1/2	UC207-20	FL207	0.65
UCFL207-21	5/16																UC207-21
UCFL207-22	3/8																UC207-22
UCFL207-23	7/16																UC207-23
UCFL207																	UC207
UCFL208-24	1/2	40	175	144	21	16	36	16	100	3	62	51.2	49.2	19	M14	1/2	UC208-24	FL208	0.8
UCFL208-25	9/16																UC208-25
UCFL208																	UC208
UCFL209-26	5/8	45	188	148	22	18	38	19	108	3	63	52.2	49.2	19	M16	5/8	UC209-26	FL209	1.15
UCFL209-27	11/16																UC209-27
UCFL209-28	3/4																UC209-28
UCFL209																	UC209
UCFL210-29	1-13/16	50	197	157	22	18	40	19	115	3	66.5	54.6	51.6	19	M16	5/8	UC210-29	FL210	1.25
UCFL210-30	7/8																UC210-30
UCFL210-31	1-15/16																UC210-31
UCFL210-32	1/2																UC210-32
UCFL210																	UC210
UCFL211-32	1/2	55	224	184	25	20	43	19	130	4	71	58.4	55.6	22.2	M16	5/8	UC211-32	FL211	1.85
UCFL211-33	1/16																UC211-33
UCFL211-34	1/8																UC211-34
UCFL211-35	3/16																UC211-35
UCFL211																	UC211
UCFL212-36	1/4	60	250	202	29	20	48	23	140	4	80	68.7	65.1	25.4	M20	3/4	UC212-36	FL212	2.1
UCFL212-37	5/16																UC212-37
UCFL212-38	3/8																UC212-38
UCFL212-39	7/16																UC212-39
UCFL212																	UC212
UCFL213-40	1/2	65	258	210	30	24	50	23	155	4	83.5	69.7	65.1	25.4	M20	3/4	UC213-40	FL213	2.8
UCFL213-41	9/16																UC213-41
UCFL213																	UC213
UCFL214-42	5/8	70	265	216	31	24	54	23	160			75.4	74.6	30.2	M20	3/4	UC214-42	FL214	3.2
UCFL214-43	11/16																UC214-43
UCFL214-44	3/4																UC214-44
UCFL214																	UC214
UCFL215-45	2-13/16	75	275	225	34	24	56	23	165			78.5	77.8	33.3	M20	3/4	UC215-45	FL215	2.8
UCFL215-46	7/8																UC215-46
UCFL215-47	2-15/16																UC215-47
UCFL215-48	1/3																UC215-48
UCFL215																	UC215
UCFL216-50	1/8	80	290	233	34	24	58	25	180			83.3	82.6	33.3	M22	7/8	UC216-50	FL216	3.53
UCFL216																	UC216
UCFL217-52	1/4	85	305	248	36	26	63	25	190			87.6	85.7	34.1	M22	7/8	UC217-52	FL217	5.5
UCFL217																	UC217
UCFL218-56	1/2	90	320	265	40	26	68	25	205			96.3	96	39.7	M22	7/8	UC218-56	FL218	6
UCFL218																	UC218
