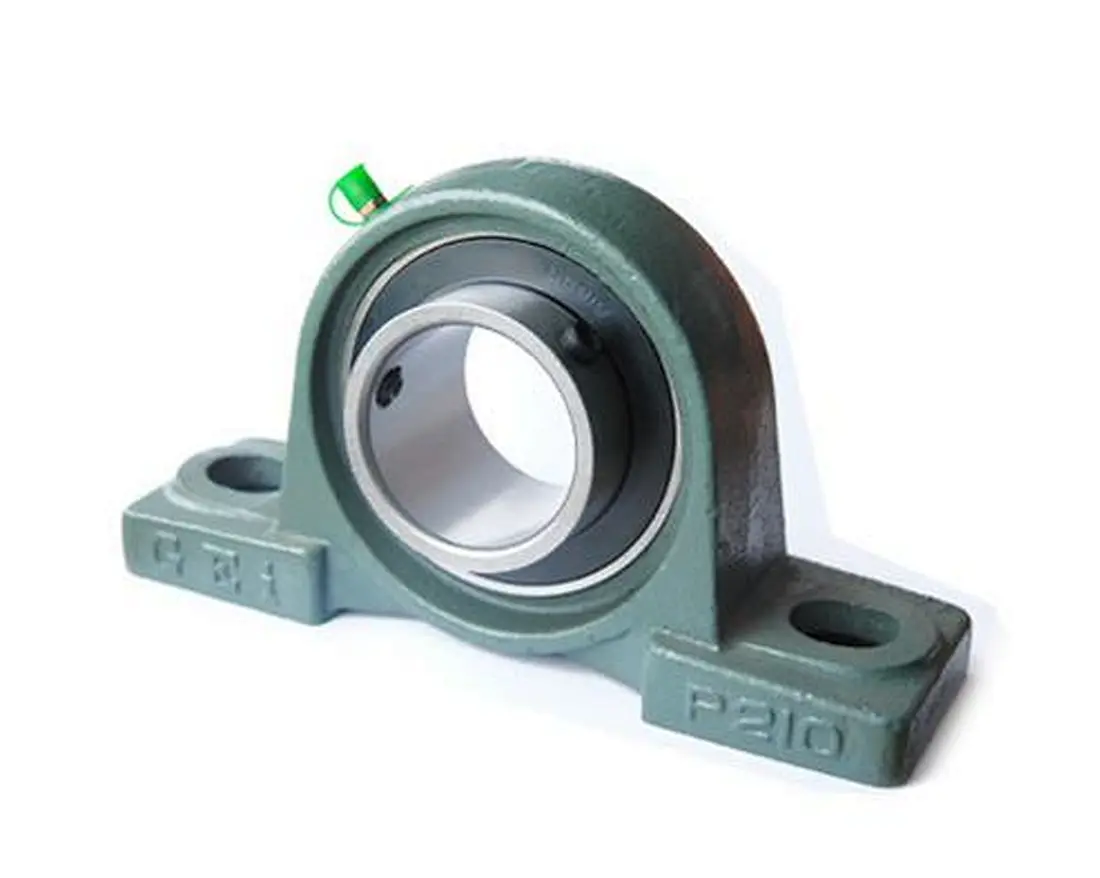

Pillow Block Bearings

UCP300 Series

Quantity:

Part No:UCP300 Series
Product Parameters:

Bearing Unit No.	Shaft Dia d		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Housing
	(in)	(mm)	h	a	e	b	s2	s1	g	w	Bi	n	(in)	(mm)			kg
UCP305-14	7/8	25	45	175	132	45	20	17	15	85	38	15	1/2	M14	UC305-14	P305	0.9
UCP305-15	15/16														UC305-15
UCP305-16	1														UC305-16
UCP305															UC305
UCP306-18	1-1/8	30	50	180	140	50	20	17	18	95	43	17	1/2	M14	UC306-18	P306	1.1
UCP306-19	1-3/16														UC306-19
UCP306															UC306
UCP307-20	1-1/4	35	56	210	160	56	25	17	20	106	48	19	1/2	M14	UC307-20	P307	1.95
UCP307-21	1-5/16														UC307-21
UCP307-22	1-3/8														UC307-22
UCP307-23	1-7/16														UC307-23
UCP307															UC307
UCP308-24	1-1/2	40	60	220	170	60	27	17	22	116	52	19	1/2	M14	UC308-24	P308	2.2
UCP308-25	1-9/16														UC308-25
UCP308															UC308
UCP309-26	1-5/8	45	67	245	190	67	30	20	24	129	57	22	5/8	M16	UC309-26	P309	3.3
UCP309-27	1-11/16														UC309-27
UCP309-28	1-3/4														UC309-28
UCP309															UC309
UCP310-30	1-7/8	50	75	275	212	75	35	20	27	143	61	22	5/8	M16	UC310-30	P310	4.8
UCP310-31	1-15/16														UC310-31
UCP310															UC310
UCP311-32	2	55	80	310	236	80	38	20	30	154	66	25	5/8	M16	UC311-32	P311	5.3
UCP311-34	2-3/8														UC311-34
UCP311-35	2-3/16														UC311-35
UCP311															UC311
UCP312-36	2-1/4	60	85	330	250	85	38	25	32	165	71	26	3/4	M20	UC312-36	P312	6.3
UCP312-38	2-3/8														UC312-38
UCP312-39	2-7/16														UC312-39
UCP312															UC312
UCP313-40	2-1/2	65	90	340	260	90	38	25	33	176	75	30	3/4	M20	UC313-40	P313	8
UCP313															UC313
UCP314-44	2-3/4	70	95	360	280	90	40	27	35	187	78	33	7/8	M22	UC314-44	P314	8.3
UCP314															UC314
UCP315-48	3	75	100	380	290	100	40	27	35	198	82	32	7/8	M22	UC315-48	P315	9.5
UCP315															UC315
UCP316-50	3-1/8	80	106	400	300	110	40	27	40	210	86	34	7/8	M22	UC316-50	P316	12.5
UCP316															UC315
UCP317-52	3-1/4	85	112	420	320	110	45	33	40	220	96	40	1	M27	UC317-52	P317	14.5
UCP317															UC317
UCP318-56	3-1/2	90	118	430	330	110	45	33	45	235	96	40	1	M27	UC318-56	P318	20.4
UCP318															UC318
UCP319-60	3-3/4	95	125	470	360	120	50	36	45	250	103	41	1-1/8	M30	UC319-60	P319	22.3
UCP319															UC319
UCP320-64	4	100	140	490	380	120	50	36	50	275	108	42	1-1/8	M30	UC320-64	P320	25
UCP320															UC320
UCP321		105	140	490	380	120	50	36	50	280	112	44	1-1/8	M30	UC321	P321	24
UCP322		110	150	520	400	140	55	40	55	300	117	46		M33	UC322	P322	27.5
UCP324		120	160	570	450	140	55	40	65	320	126	51		M33	UC324	P324	32.3
UCP326		130	180	600	480	140	55	40	75	355	135	54		M33	UC326	P326	41
UCP328		140	200	620	500	140	55	40	75	390	145	59		M33	UC328	P328	50
