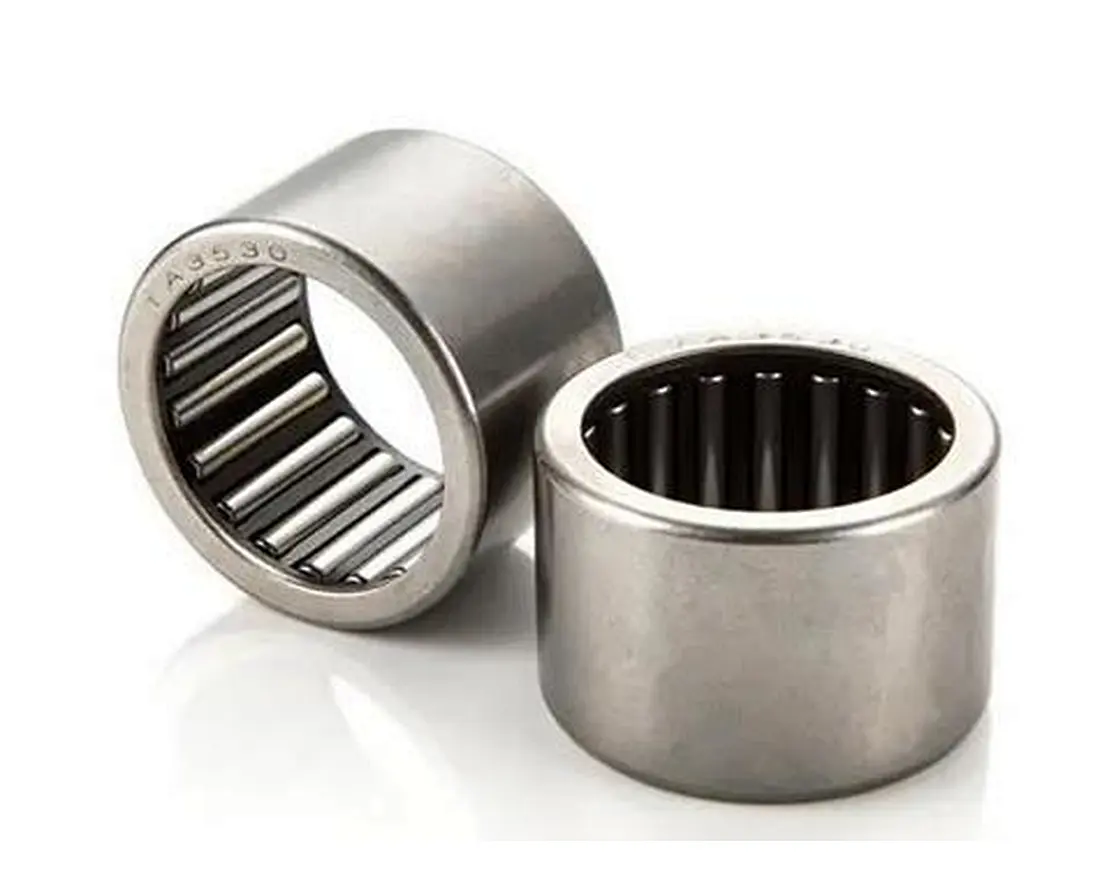

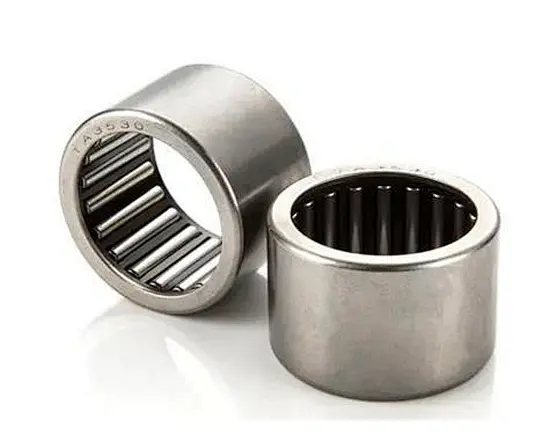

Needle Roller Bearings

Needle Roller Bearings

TC/TRA/TRB/TRC/TRD Series

Quantity:

Part No:TC/TRA/TRB/TRC/TRD Series
Product Parameters:

Shaft Diameter	Bearing Designation	Boundary Dimensions						Basic Load Rating		Limiting Speed	TRA
		Boundary Dimensions						Basic Load Rating		Limiting Speed	TRB
		dw /d		Dg/D		Dw		Dynamic	Static	Oil	TRC
inch		inch	mm	inch	mm	inch	mm	N		rpm	TRD
0.25	TC411	0.25	6.35	0.687	17.45	0.0781	1.984	1370	3000	16000	411
0.312	TC512	0.312	7.49	0.75	19.05	0.0781	1.984	1560	3650	15000	512
0.375	TC613	0.375	9.52	0.812	20.62	0.0781	1.984	1620	4000	15000	613
0.5	TC815	0.5	12.7	0.937	23.8	0.0781	1.984	1920	5300	13000	815
0.625	TCl018	0.625	15.88	1.125	28.58	0.0781	1.984	2170	6600	11000	1018
0.75	TCl220	0.75	19.05	1.25	31.75	0.0781	1.984	2410	8000	9500	1220
0.875	TCl423	0.875	22.22	1.437	36.5	0.0781	1.984	2900	10500	8500	1423
0.875	TCl427	0.875	22.22	1.687	42.85	0.0781	1.984	4400	18600	7500	1427
1	TCl525	1	25.4	1.562	39.67	0.0781	1.984	3150	12100	7500	1525
1.125	TCl828	1.125	28.58	1.75	44.45	0.0781	1.984	3850	16300	6500	1828
1.188	TCl931	1.188	30.16	1.937	49.2	0.0781	1.984	4500	20500	6000	1931
1.25	TC2013	1.25	31.75	1.937	49.2	0.0781	1.984	4500	20500	6000	2013
1.375	TC2233	1.375	34.92	2.062	52.37	0.0781	1.984	4600	21600	5500	2233
1.5	TC2435	1.5	38.1	2.187	55.55	0.0781	1.984	4850	23700	5000	2435
1.75	TC2840	1.75	44.45	2.5	63.5	0.0781	1.984	5600	30000	4500	2840
2	TC3244	2	50.8	2.75	69.85	0.0781	1.984	5800	32500	4000	3244
2.25	TC3648	2.25	57.15	3	76.2	0.0781	1.984	6000	35000	3600	3648
2.5	TC4052	2.5	63.5	3.25	82.55	0.0781	1.984	6200	37500	3300	4052
3	TC4860	3	76.2	3.75	95.25	0.0781	1.984	6600	42500	2800	4860
3.25	TC5266	3.25	82.55	4.125	104.78	0.125	3.175	10900	61000	2600	5266
4.125	TC6681	4.125	104.78	6.062	128.57	0.125	3.175	14200	92000	2100	6681
