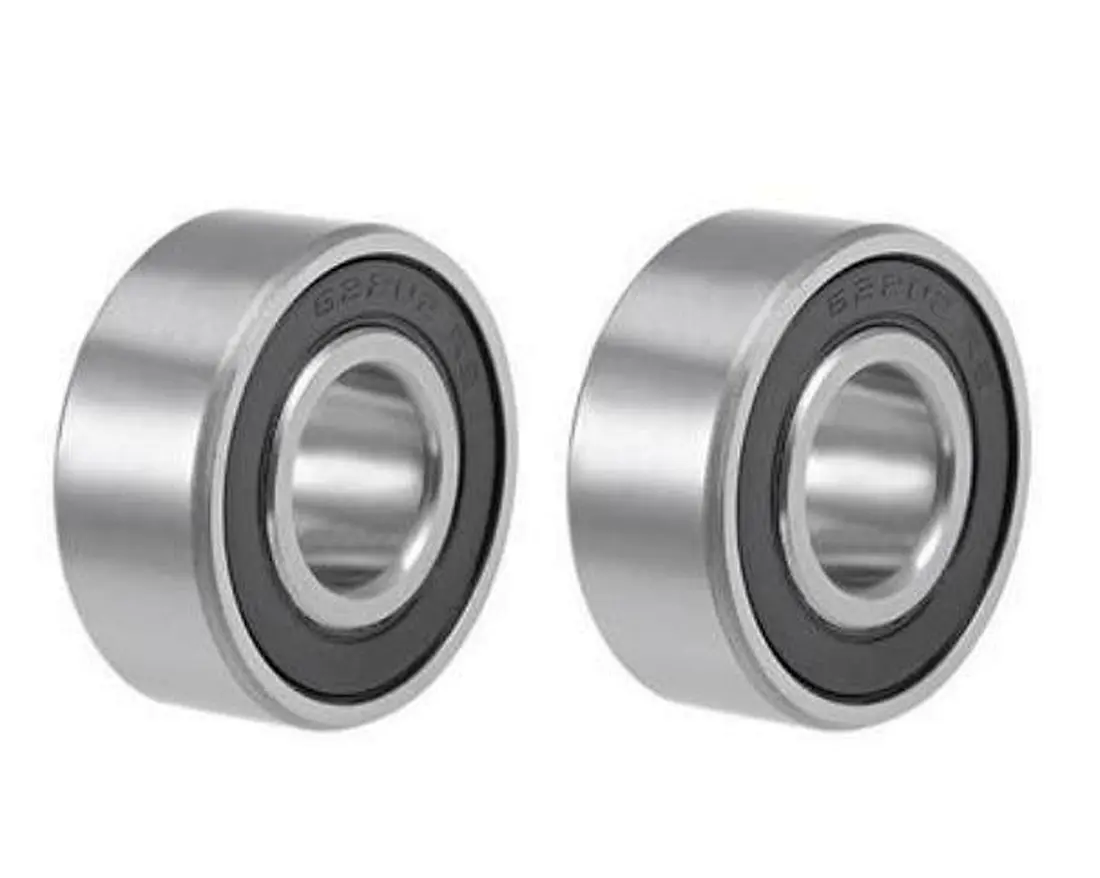

62200 & 62300 Series
62200 OPEN.2RS/ZZ
Quantity:
| Part No:62200 & 62300 Series | ||||
| Product Parameters: | ||||
| Boundary dimensions(mm) | Basic load ratings(kN) | Ball Complement | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||||
| (Approx.) | |||||||||||
| d | D | B | rs min | Cr | Cor | No. | Size | Grease | Oil | ||
| mm | r/min | r/min | |||||||||
| 10 | 30 | 14 | 0.6 | 3.928 | 2.23 | 8 | 4.762 | 19000 | 26000 | 0.044 | 62200/2RS/ZZ |
| 12 | 32 | 14 | 0.6 | 5.241 | 3.02 | 7 | 5.953 | 18000 | 24000 | 0.0531 | 62201/2RS/ZZ |
| 15 | 35 | 14 | 0.6 | 5.864 | 3.49 | 8 | 5.953 | 17000 | 22000 | 0.065 | 62202/2RS/ZZ |
| 17 | 40 | 16 | 0.6 | 7.36 | 4.48 | 8 | 6.747 | 16000 | 20000 | 0.096 | 62203/2RS/ZZ |
| 20 | 47 | 18 | 1.1 | 9.867 | 6.2 | 8 | 7.938 | 14000 | 18000 | 0.15 | 62204/2RS/ZZ |
| 25 | 52 | 18 | 1 | 10.78 | 6.98 | 9 | 7.938 | 13000 | 16000 | 0.178 | 62205/2RS/ZZ |
| 30 | 62 | 20 | 1 | 14.9 | 10 | 9 | 9.525 | 12000 | 13000 | 0.215 | 62206/2RS/ZZ |
| 35 | 72 | 23 | 1.1 | 21.6 | 13.7 | 9 | 11.112 | 95000 | 11000 | 0.31 | 62207/2RS/ZZ |
| 40 | 80 | 23 | 1.1 | 22.8 | 15.8 | 9 | 12 | 8500 | 10000 | 0.406 | 62208/2RS/ZZ |
| 45 | 85 | 23 | 1.1 | 24.5 | 17.5 | 10 | 12 | 7000 | 9000 | 0.455 | 62209/2RS/ZZ |
| 50 | 90 | 23 | 1.1 | 27 | 19.8 | 10 | 12.7 | 6700 | 9000 | 0.496 | 62210/2RS/ZZ |
| Boundary dimensions(mm) | Basic load ratings(kN) | Ball Complement | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||||
| (Approx.) | |||||||||||
| d | D | B | rs min | Cr | Cor | No. | Size | Grease | Oil | ||
| mm | r/min | r/min | |||||||||
| 10 | 35 | 17 | 0.6 | 5.88 | 3.47 | 7 | 6.35 | 18000 | 24000 | 62300/2RS/ZZ | |
| 12 | 37 | 17 | 1 | 7.48 | 4.65 | 6 | 7.938 | 17000 | 22000 | 62301/2RS/ZZ | |
| 15 | 42 | 17 | 1 | 8.791 | 5.42 | 7 | 7.938 | 16000 | 20000 | 62302/2RS/ZZ | |
| 17 | 47 | 19 | 1 | 10.438 | 6.58 | 7 | 8.731 | 15000 | 19000 | 62303/2RS/ZZ | |
| 20 | 52 | 21 | 1.1 | 12.26 | 7.81 | 7 | 9.525 | 14000 | 18000 | 62304/2RS/ZZ | |
| 25 | 62 | 24 | 1.1 | 17.22 | 11.39 | 7 | 11.5 | 12000 | 16000 | 62305/2RS/ZZ | |
| 30 | 72 | 27 | 1.1 | 20.77 | 14.7 | 8 | 12 | 10000 | 14000 | 62306/2RS/ZZ | |
| 35 | 80 | 31 | 1.5 | 25.66 | 17.92 | 8 | 13.494 | 9000 | 13000 | 62307/2RS/ZZ | |
| 40 | 90 | 33 | 1.5 | 36.2 | 23.5 | 8 | 15.081 | 7000 | 9000 | 62308/2RS/ZZ | |
| 45 | 100 | 36 | 1.5 | 47.7 | 62309/2RS/ZZ | ||||||
