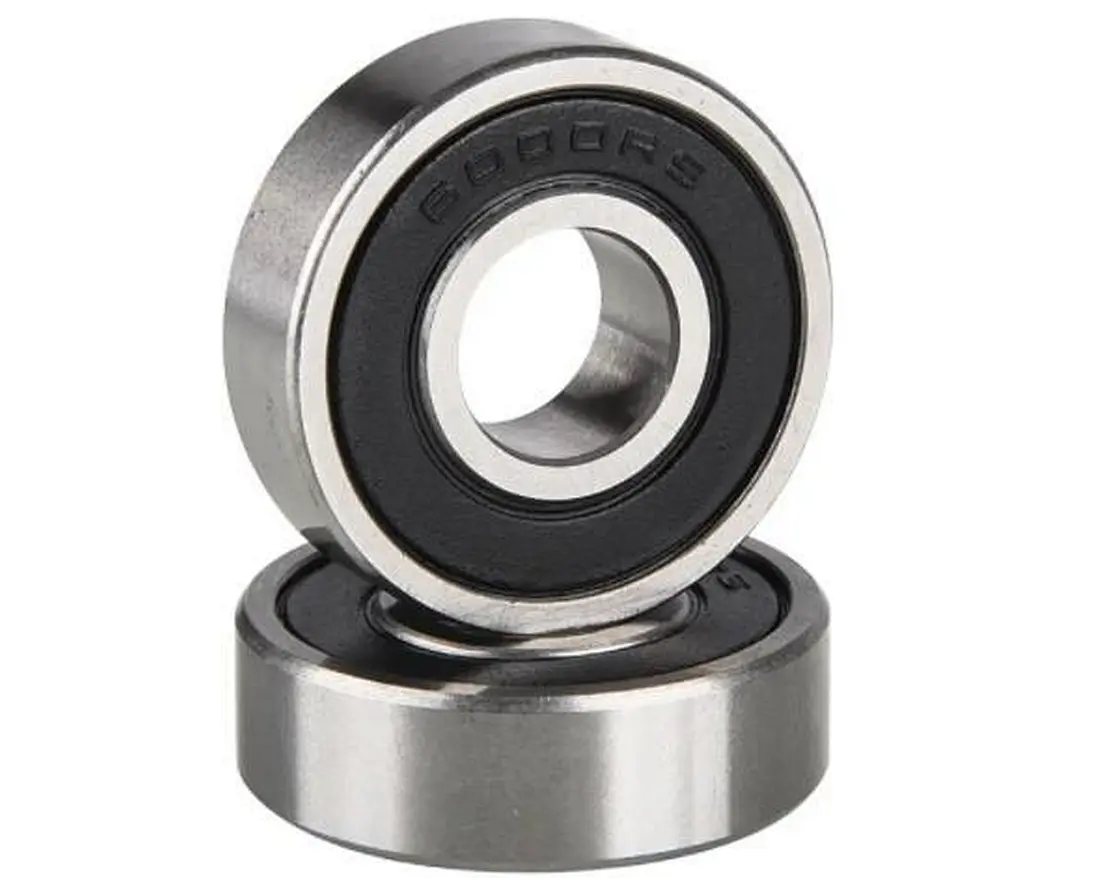

6000 Series

6000 OPEN/2RS/ZZ/NR

Quantity:

Part No:6000 Series
Product Parameters:

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
10	26	8	0.3	4.55	1.96	29,000	34,000	0.019	6000
12	28	8	0.3	5.1	2.39	26,000	30,000	0.021	6001
15	32	9	0.3	5.6	2.83	22,000	26,000	0.03	6002
17	35	10	0.3	6.8	3.35	20,000	24,000	0.039	6003
20	42	12	0.6	9.4	5.05	18,000	21,000	0.069	6004
25	47	12	0.6	10.1	5.85	15,000	18,000	0.08	6005
30	55	13	1	13.2	8.3	13,000	15,000	0.116	6006
35	62	14	1	16	10.3	12,000	14,000	0.155	6007
40	68	15	1	16.8	11.5	10,000	12,000	0.19	6008
45	75	16	1	21	15.1	9,200	11,000	0.237	6009
50	80	16	1	21.8	16.6	8,400	9,800	0.261	6010
55	90	18	1.1	28.3	21.2	7,700	9,000	0.388	6011
60	95	18	1.1	29.5	23.2	7,000	8,300	0.414	6012
65	100	18	1.1	30.5	25.2	6,500	7,700	0.421	6013
70	110	20	1.1	38	31	6,100	7,100	0.604	6014
75	115	20	1.1	39.5	33.5	5,700	6,700	0.649	6015
80	125	22	1.1	47.5	40	5,300	6,200	0.854	6016
85	130	22	1.1	49.5	43	5,000	5,900	0.89	6017
90	140	24	1.5	58	49.5	4,700	5,600	1.02	6018
95	145	24	1.5	60.5	54	4,500	5,300	1.08	6019
100	150	24	1.5	60	54	4,200	5,000	1.15	6020
105	160	26	2	72.5	65.5	4,000	4,700	1.59	6021
110	170	28	2	82	73	3,800	4,500	1.96	6022
120	180	28	2	85	79.5	3,500	4,100	2.07	6024
130	200	33	2	106	101	3,200	3,800	3.16	6026
140	210	33	2	110	109	3,000	3,500	3.35	6028
150	225	35	2.1	126	126	2,800	3,200	4.08	6030
160	240	38	2.1	143	144	2,600	3,000	5.05	6032
170	260	42	2.1	168	172	2,400	2,800	6.76	6034
180	280	46	2.1	189	199	2,300	2,700	8.8	6036
190	290	46	2.1	197	215	2,100	2,500	9.18	6038
200	310	51	2.1	218	243	2,000	2,400	11.9	6040
22	44	12	0.6	955	515	17,000	20,000	0.074	60/22
28	52	12	0.6	1,270	755	14,000	16,000	0.098	60/28
32	58	13	1	1,200	820	12,000	15,000	0.129	60/32

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
10	26	8	0.3	4.55	1.96	29,000	34,000	0.019	6000-2RS
12	28	8	0.3	5.1	2.39	26,000	30,000	0.021	6001-2RS
15	32	9	0.3	5.6	2.83	22,000	26,000	0.03	6002-2RS
17	35	10	0.3	6.8	3.35	20,000	24,000	0.039	6003-2RS
20	42	12	0.6	9.4	5.05	18,000	21,000	0.069	6004-2RS
25	47	12	0.6	10.1	5.85	15,000	18,000	0.08	6005-2RS
30	55	13	1	13.2	8.3	13,000	15,000	0.116	6006-2RS
35	62	14	1	16	10.3	12,000	14,000	0.155	6007-2RS
40	68	15	1	16.8	11.5	10,000	12,000	0.19	6008-2RS
45	75	16	1	21	15.1	9,200	11,000	0.237	6009-2RS
50	80	16	1	21.8	16.6	8,400	9,800	0.261	6010-2RS
55	90	18	1.1	28.3	21.2	7,700	9,000	0.388	6011-2RS
60	95	18	1.1	29.5	23.2	7,000	8,300	0.414	6012-2RS
65	100	18	1.1	30.5	25.2	6,500	7,700	0.421	6013-2RS
70	110	20	1.1	38	31	6,100	7,100	0.604	6014-2RS
75	115	20	1.1	39.5	33.5	5,700	6,700	0.649	6015-2RS
80	125	22	1.1	47.5	40	5,300	6,200	0.854	6016-2RS
85	130	22	1.1	49.5	43	5,000	5,900	0.89	6017-2RS
90	140	24	1.5	58	49.5	4,700	5,600	1.02	6018-2RS
95	145	24	1.5	60.5	54	4,500	5,300	1.08	6019-2RS
100	150	24	1.5	60	54	4,200	5,000	1.15	6020-2RS
105	160	26	2	72.5	65.5	4,000	4,700	1.59	6021-2RS
110	170	28	2	82	73	3,800	4,500	1.96	6022-2RS
120	180	28	2	85	79.5	3,500	4,100	2.07	6024-2RS
130	200	33	2	106	101	3,200	3,800	3.16	6026-2RS
140	210	33	2	110	109	3,000	3,500	3.35	6028-2RS
150	225	35	2.1	126	126	2,800	3,200	4.08	6030-2RS
160	240	38	2.1	143	144	2,600	3,000	5.05	6032-2RS
22	44	12	0.6	955	515	13,000	20,000	0.074	60/22-2RS
28	52	12	0.6	1,270	755	10,000	16,000	0.098	60/28-2RS
32	58	13	1	1,200	820	8,700	15,000	0.129	60/32-2RS
10	26	8	0.3	4.55	1.96	29,000	34,000	0.019	6000-ZZ
12	28	8	0.3	5.1	2.39	26,000	30,000	0.021	6001-ZZ
15	32	9	0.3	5.6	2.83	22,000	26,000	0.03	6002-ZZ
17	35	10	0.3	6.8	3.35	20,000	24,000	0.039	6003-ZZ
20	42	12	0.6	9.4	5.05	18,000	21,000	0.069	6004-ZZ
25	47	12	0.6	10.1	5.85	15,000	18,000	0.08	6005-ZZ
30	55	13	1	13.2	8.3	13,000	15,000	0.116	6006-ZZ
35	62	14	1	16	10.3	12,000	14,000	0.155	6007-ZZ
40	68	15	1	16.8	11.5	10,000	12,000	0.19	6008-ZZ
45	75	16	1	21	15.1	9,200	11,000	0.237	6009-ZZ
50	80	16	1	21.8	16.6	8,400	9,800	0.261	6010-ZZ
55	90	18	1.1	28.3	21.2	7,700	9,000	0.388	6011-ZZ
60	95	18	1.1	29.5	23.2	7,000	8,300	0.414	6012-ZZ
65	100	18	1.1	30.5	25.2	6,500	7,700	0.421	6013-ZZ
70	110	20	1.1	38	31	6,100	7,100	0.604	6014-ZZ
75	115	20	1.1	39.5	33.5	5,700	6,700	0.649	6015-ZZ
80	125	22	1.1	47.5	40	5,300	6,200	0.854	6016-ZZ
85	130	22	1.1	49.5	43	5,000	5,900	0.89	6017-ZZ
90	140	24	1.5	58	49.5	4,700	5,600	1.02	6018-ZZ
95	145	24	1.5	60.5	54	4,500	5,300	1.08	6019-ZZ
100	150	24	1.5	60	54	4,200	5,000	1.15	6020-ZZ
105	160	26	2	72.5	65.5	4,000	4,700	1.59	6021-ZZ
110	170	28	2	82	73	3,800	4,500	1.96	6022-ZZ
120	180	28	2	85	79.5	3,500	4,100	2.07	6024-ZZ
130	200	33	2	106	101	3,200	3,800	3.16	6026-ZZ
140	210	33	2	110	109	3,000	3,500	3.35	6028-ZZ
150	225	35	2.1	126	126	2,800	3,200	4.08	6030-ZZ
160	240	38	2.1	143	144	2,600	3,000	5.05	6032-ZZ
22	44	12	0.6	955	515	13,000	20,000	0.074	60/22-ZZ
28	52	12	0.6	1,270	755	10,000	16,000	0.098	60/28-ZZ
32	58	13	1	1,200	820	8,700	15,000	0.129	60/32-ZZ

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
15	32	9	0.3	5.6	2.83	22,000	26,000	0.032	6002-ZNR
17	35	10	0.3	6.8	3.35	20,000	24,000	0.041	6003-ZNR
20	42	12	0.6	9.4	5.05	18,000	21,000	0.071	6004-ZNR
25	47	12	0.6	10.1	5.85	15,000	18,000	0.084	6005-ZNR
30	55	13	1	13.2	8.3	13,000	15,000	0.12	6006-ZNR
35	62	14	1	16	10.3	12,000	14,000	0.162	6007-ZNR
40	68	15	1	16.8	11.5	10,000	12,000	0.199	6008-ZNR
45	75	16	1	21	15.1	9,200	11,000	0.247	6009-ZNR
50	80	16	1	21.8	16.6	8,400	9,800	0.272	6010-ZNR
55	90	18	1.1	28.3	21.2	7,700	9,000	0.405	6011-ZNR
60	95	18	1.1	29.5	23.2	7,000	8,300	0.432	6012-ZNR
65	100	18	1.1	30.5	25.2	6,500	7,700	0.44	6013-ZNR
70	110	20	1.1	38	31	6,100	7,100	0.625	6014-ZNR
75	115	20	1.1	39.5	33.5	5,700	6,700	0.671	6015-ZNR
80	125	22	1.1	47.5	40	5,300	6,200	0.895	6016-ZNR
85	130	22	1.1	49.5	43	5,000	5,900	0.933	6017-ZNR
90	140	24	1.5	58	49.5	4,700	5,600	1.07	6018-ZNR
95	145	24	1.5	60.5	54	4,500	5,300	1.13	6019-ZNR
100	150	24	1.5	60	54	4,200	5,000	1.2	6020-ZNR
105	160	26	2	72.5	65.5	4,000	4,700	1.64	6021-ZNR
110	170	28	2	82	73	3,800	4,500	2.04	6022-ZNR
120	180	28	2	85	79.5	3,500	4,100	2.16	6024-ZNR
130	200	33	2	106	101	3,200	3,800	3.26	6026-ZNR
